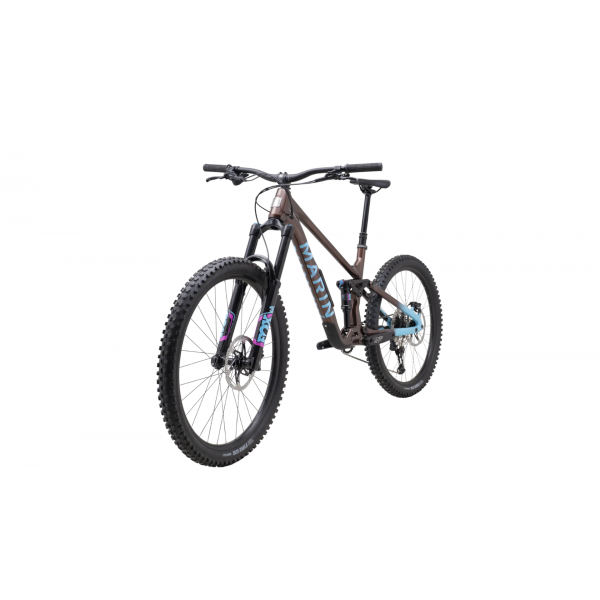

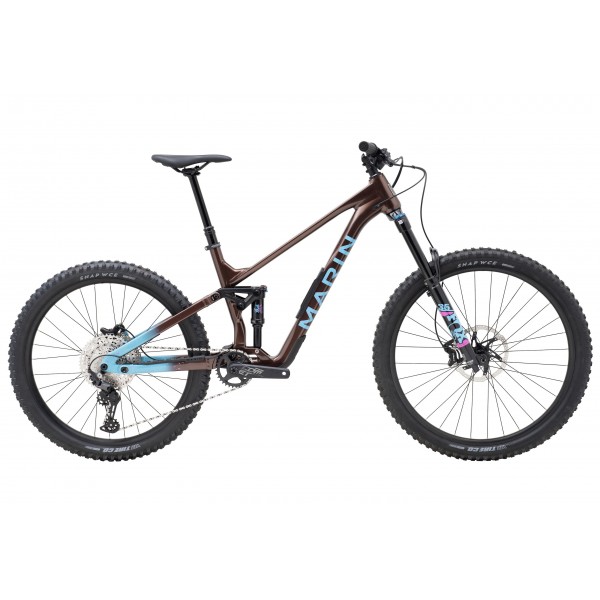

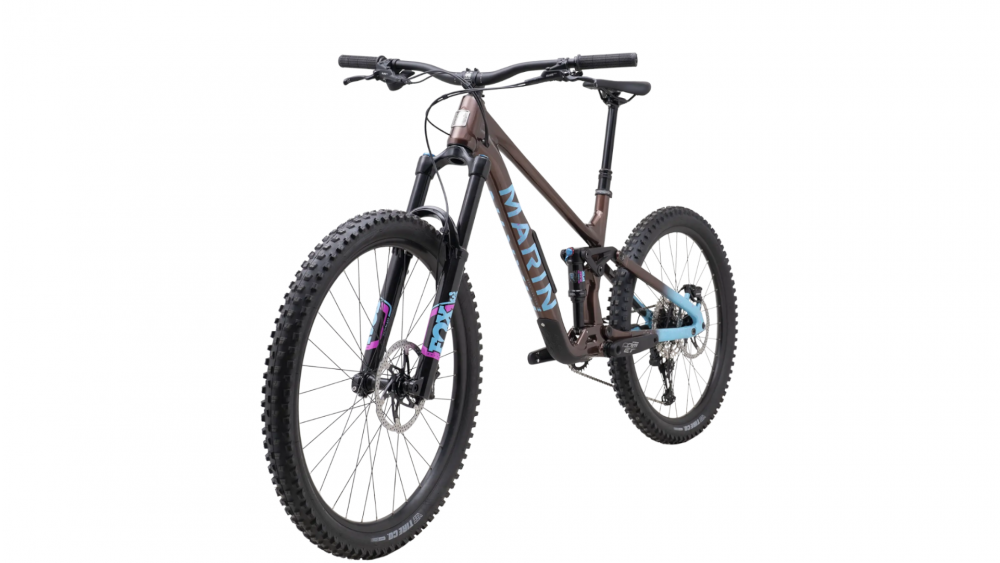

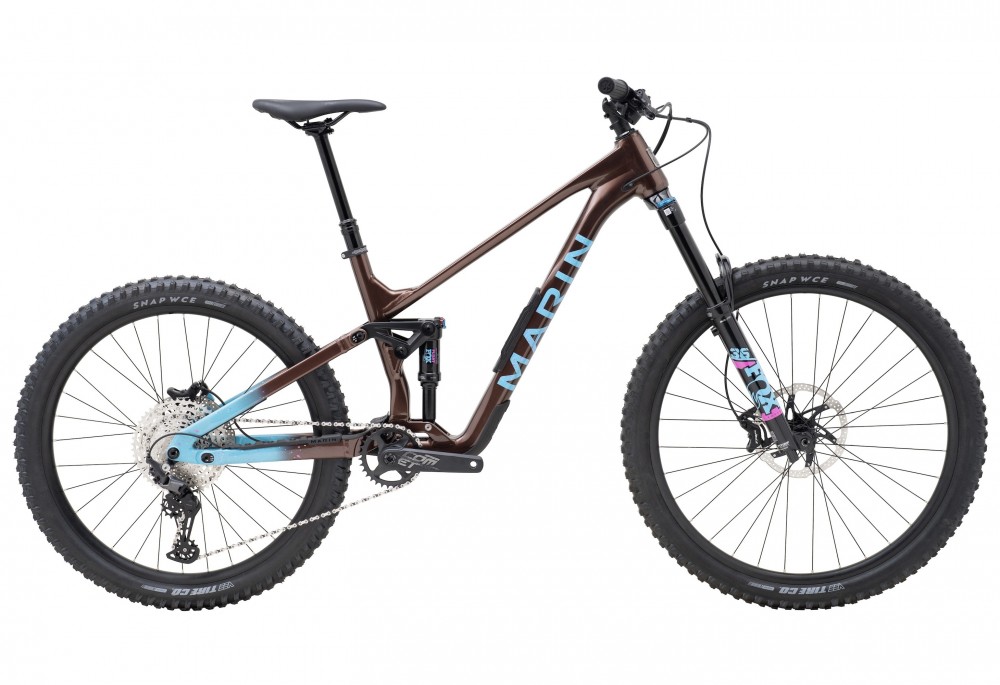

Marin Alpine Trail 1
Marin Alpine Trail 1
The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.
While the Alpine Trail 1 is the starting point in the three-model lineup, we didn’t make any concessions regarding the spec. High-performance Fox suspension keeps you in control, while a Shimano Deore 12-speed drivetrain transmits your power to the wheel. TRP’s Slate Evo 4-piston brakes feature 203mm rotors, keeping all that speed in check in a powerful, fade-free manner.
Specification:
|
Frame
|
All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|
Fork
|
Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset |
|
Rear Shock
|
Fox Float Performance, 205x65, 30xM8 Lower Hardware, Custom Tune |
|
Rim
|
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible |
|
Hub Rear
|
Shimano HB-TC500, 148x12mm, Micro Spline Freehub Body |
|
Hub Front
|
Shimano FH-TC500, 110x15mm |
|
Spokes
|
14g Black Stainless Steel |
|
Tyres
|
Vee Tire Co. Snap WCE, 29x2.6" Front 27.5x2.6" Rear, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible |
|
Derailleur Rear
|
Shimano Deore, 12-Speed, SGS |
|
Shift Lever
|
Shimano Deore, 12-Speed, SL-6100-IR |
|
Crankset
|
FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
|
Bottom Bracket
|
FSA MegaExo 73mm BSA |
|
Chain
|
KMC X-12 Silver and Black |
|
Cassette
|
Shimano, Deore M6100 12-Speed, 10-51T |
|
Brakes Front
|
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor |
|
Brakes Rear
|
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor |
|
Brake Levers
|
TRP Slate EVO Hydraulic, I-Spec EV Compatible |
|
Handlebar
|
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
|
Stem
|
Marin 3D Forged Alloy, 35mm |
|
Grips
|
Marin Grizzly Lock-On |
|
Headset
|
FSA Custom, Adjustable HTA Design |
|
Seatpost
|
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm |
|
Saddle
|
Marin Speed Concept |
|
Extras
|
Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
|
Extras
|
Downtube Storage Bag |
PRICES
£3,099.00
