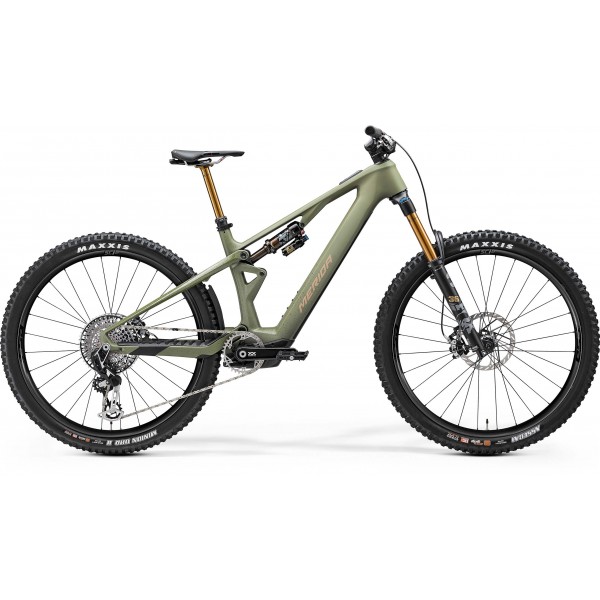

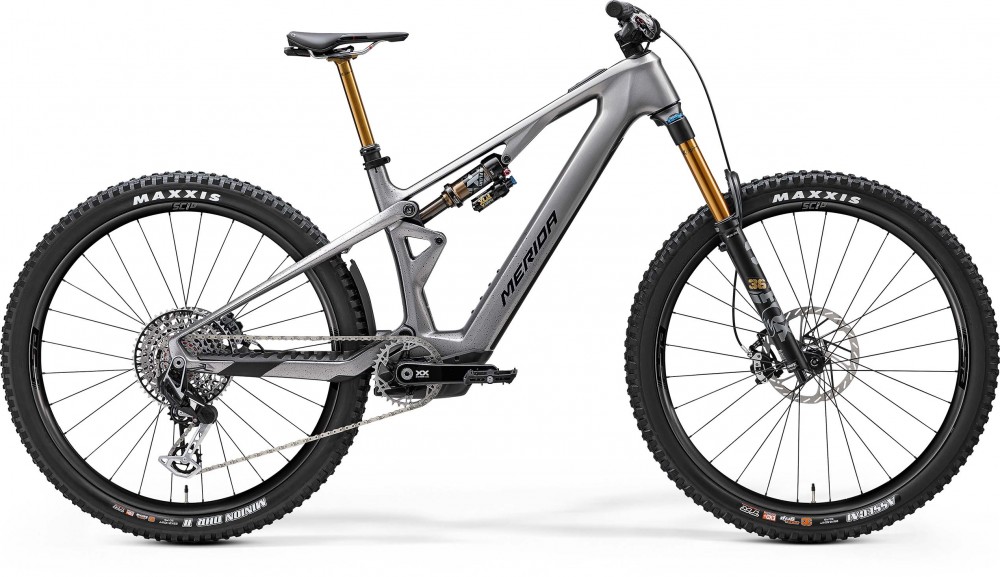

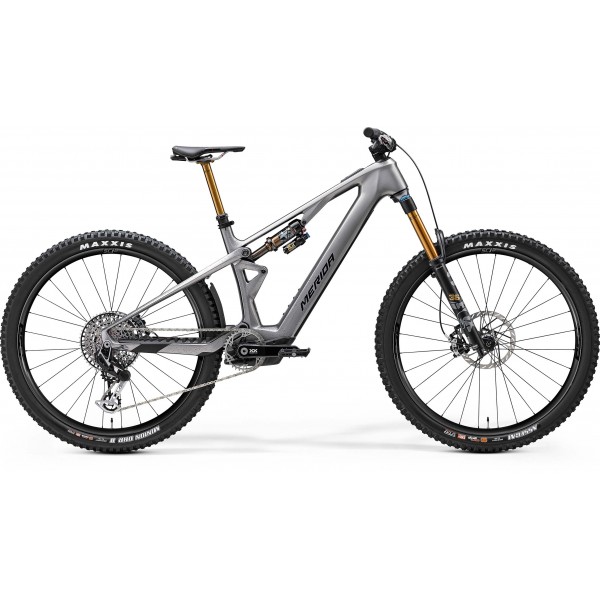

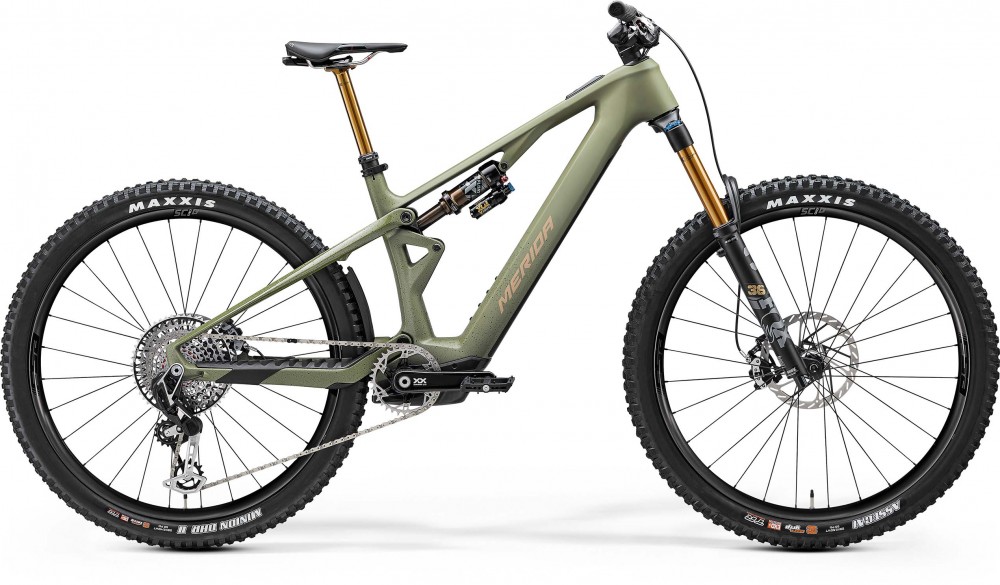

Merida eOne-Sixty SL 10K

Merida eOne-Sixty SL 10K

Full Carbon frame with 160mm travel, front and rear
55Nm Bosch Performance Line SX drive unit; integrated (non removable) 400Wh battery
250Wh PowerMore range extender available separately
Fox 36 Factory fork and Float X Factory air shock
SRAM XX Eagle T-type AXS 12 speed and Maven Ultimate 4-piston brakes
FSA SC I30 carbon wheelset; 29" front and rear, Tubeless ready (tubeless tape and valves included) - can run a mullet setup

Lightweight carbon eMTB frame, powered by Bosch Performance Line SX drive unit and integrated 400 Wh battery (non removable). A 250Wh battery extender is available separately. Fox 36 Factory fork and Float X Factory air shock, SRAM XX Eagle T-type AXS 12 speed, Maven Ultimate 4-piston brakes and FSA SC I30 carbon wheelset; 29" front and rear (can be swapped to mullet using flip chip)

The range topping eOne-Sixty SL 10K is loaded with the best equipment available; a full fat spec for enduro riding out of the box, not a stripped down spec to reach a weight target. Its progressive geometry offers enduro focused handling with the perfect combination of stability, climbing prowess and manoeuvrabilit. Add the punchy 55Nm of torque from the Bosch Performance Line SX drive unit and the eOne-Sixty offers active riders the perfect balance between human powered handling and eMTB assistance If you're the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail the eOne-Sixty SL is the bike for you. It represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160mm of well balanced travel and a build that blends hard hitting performance with low weight, it blurs the line between conventional and assisted riding. Assistance is courtesy of the latest compact Bosch Performance Line SX motor with 55Nm and a fully integrated 400 Wh battery, a 250Wh range extender can be purchased separately. Approx overall weight 19.5kg. Lifetime frame warranty (category 4).

Specification

Frame: CF4; full carbon; 160mm travel; fixed battery; Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"

Motor: Bosch Performance Line SX

Battery: Bosch CompactTube (CPT); 400Wh

Battery Capacity: 400Wh

eBike Display: Bosch Purion 400

Mode Switch: Bosch Mini Remote

Shock: Fox Float X Factory

Fork: Fox 36 Float Factory; Air, 160mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size

Gears: 12

Shifters: SRAM AXS Pod Ultimate Controller

Rear Derailleur: SRAM XX Eagle Transmission AXS

Chain: SRAM XX Eagle; Flattop

Chainset: SRAM XX Eagle Transmission E-MTB for BOSCH; 34 teeth. SRAM XX Eagle E-MTB Crank; 165 mm for all sizes

Cassette: SRAM XX Eagle Transmission ; 10-52; 12 speed

Brake Lever: SRAM Maven

Front Brake: SRAM Maven Ultimate 4 piston hydraulic disc brake with SRAM HS2; 200mm rotor

Rear Brake: SRAM Maven Ultimate 4 piston hydraulic disc brake with SRAM HS2; 200mm rotor

Grip: Merida Expert EC

Handlebar: Race Face Era; 780mm wide

Stem: Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes

Head Set: Acros ICR Merida integrated neck with Blocklock

Pedal: VP VP-532

Saddle: PROXIM Nembo Steel; V-mount adapter; incl. Merida minitool

Seat Post: Fox Transfer Factory Series; 34,9mm diameter; 0 mm lay back;

Wheel Size: 29" / 27.5"

Rims: Part of wheelset -FSA SC30; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included)

Spokes: Part of wheelset

Front Hub: Part of wheelset - FSA SC30; 110x15mm; 6-Bolt

Rear Hub: Part of wheelset - FSA SC30; 148x12mm; 6-Bolt; SRAM XD with Merida Expert TR axle; including removeable lever, 6/4mm allen key

Front Tyre: Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip

Rear Tyre: Maxxis Minion DHR II; 29x2.4"; kevlar bead; TR EXO+ 3C MaxxTerra

Colour: Glossy Gunmetal Grey

Front Light: CG-119PG-BLACK(1)

Rear Light: CG-404RG-BLK

PRICES

£9,500.00

STOCK

We have this product on order with our supplier. Please contact us for the latest ETA date. This date is subject to change, but it represents their best estimate based on planned production and shipping schedules.

If you wish to reserve this product please call us on 01584 879288 to place a pre-order. A small deposit is required with the remaining balance paid on collection / prior to delivery. We will endeavour to keep you updated with any delivery updates we receive from this time.
